Snap-action Microswitches Burgess and Auto Power-Off switches
General Burgess Catalogue
Snap-action Microswitches
 |
 |
 |
|||
| Type |
F1 |
F4 |
F5 |
||
| Characteristics | ■ small size ■ high current ■ long mechanical life ■ PCB mounting |
■ small size ■ long mechanical and electrical life ■ solder terminals |
■ small switch ■ long mechanical and electrical life ■ PCB mounting |
||
| Rating | 250 VAC, 5 A | 250 VAC, 5 A | 250 VAC, 5 A | ||
| Dimensions(mm) | 6 x 6 x 6.5 | 12.8 x 10 x 5 | 12.8 x 7 x 5 | ||
| Actuator | ■ plunger ■ plain lever ■ simulated roller lever/ cam follower |
■ plunger ■ plain lever ■ simulated roller lever/ cam follower |
■ plunger ■ plain lever ■ simulated roller lever/ cam follower |
|
|
| Approvals | UL, CSA | UL, CSA | UL, CSA | ||
| Page | 16 | 19 | 22 | ||
|
|
|
Snap-action Microswitches
 |
 |
 |
|||
| Type |
F1NS |
L16 |
FK4 |
||
| Characteristics | ■ small size ■ PCB mounting ■ sealed IP54 (option) |
■ small size ■ sealed (IP6K ) ■ PCB mounting |
■ double break switching ■ long mechanical and electrical life ■ solder, 2 mm faston and PCB mounting ■ snap-action |
||
| Rating | up to 250 VAC. 1A | 12–30 VDC, 1–300 mA | 250 VAC, 5 A | ||
| Dimensions(mm) | 16 x 6.5 x 6 | 14.7 x 9 x 5.4 | |||
| Actuator | ■ plunger ■ plain lever ■ simulated roller lever/ cam follower |
■ plunger ■ plain lever ■ cam follower |
■ plunger ■ plain lever ■ simulated roller lever/ cam follower |
||
| Approvals | none | Automotive std | UL,CSA | ||
| Page | 25 | 28 | 31 | ||
|
|
|
Snap-action Microswitches
 |
 |
 |
|||
| Type |
V4L |
V3NS |
V3S |
||
| Characteristics | ■ long overtravel of 2.2 mm minimum ■ sealed to IP6K option ■ pre-wired option ■ solder terminals ■ compliant to glow wire test IEC 60335- , 4. ed. as optional item |
■ sealed (IP67) ■ pre-wired option ■ faston terminals ■ compliant to glow wire test requirements IEC 60335 |
■ sealed (IP6 ) ■ flying leads ■ robust construction |
||
| Rating | 250 VAC, 5 A | 250 VAC, 6A | 250 VAC, 5 A | ||
| Dimensions(mm) | 20 x 11 x 6.4 | 32 x 10.4 x 15.9 | 32 x 24 x 10 | ||
| Actuator | ■ plunger ■ plain lever ■ ice break lever |
■ plunger |
■ plunger ■ plain levers ■ roller levers |
||
| Approvals | ENEC,UL,CSA | ENEC,UL,CSA | ENEC,UL,CSA | ||
| Page | 35 | 40 | 43 | ||
|
|
|
Snap-action Microswitches
 |
 |
 |
|||
| Type |
3BR |
V9N |
4BR |
||
| Characteristics | ■ choice of IP54 or IP6 sealed versions ■ precise movements and exceptional repeat accuracy ■ flying lead version available ■ long overtravel |
■ sealed (IP6 ) ■ metal housed ■ screw terminals or flying leads |
■ choice of IP54 or IP6 sealed versions ■ precise movements and exceptional repeat accuracy ■ robust metal housing ■ flying lead version available ■ long overtravel |
||
| Rating | 250 VAC, 10 A max. | 250 VAC, 10 A max. | 125 VAC, 10 A max. | ||
| Dimensions(mm) | 53.1 x 20.6 x 30.8 | 42 x 24.5 x 16 | 53.1 x 20.6 x 29.2 | ||
| Actuator | ■ plunger | ■ plunger ■ plain levers ■ reverse action levers ■ roller levers |
■ plunger | ||
| Approvals | UL, CSA | UL, CSA | UL, CSA | ||
| Page | 52 | 55 | 59 | ||
|
|
|
Snap-action Microswitches
 |
 |
 |
|||
| Type |
BVM3 |
KB5 |
XP |
||
| Characteristics | ■ positive-action (forced break) contacts ■ > 3 mm contact gap at full travel ■ internationally recognized V3 housing ■ faston terminals |
■ positive-action forced double break switching ■ > 3 mm contact gap at full travel ■ high electrical rating ■ faston terminals |
■ double break switching ■ positive-action force break option ■ > 3 mm contact gap at full travel option ■ faston terminals |
||
| Rating | 250 VAC, 10 A | up to 250 V, 25 A | 400 VAC, 16 A | ||
| Dimensions(mm) | 28 x 16 x 10.5 | 41 x 19.5 x 15.5 | 30 x 32 x 12 | ||
| Actuator | ■ plunger ■ plain lever ■ roller lever |
■ plunger ■ plain lever ■ roller levers |
■ plain plunger ■ mushroom plunger ■ plunger with external spring (for increased reset security) |
||
| Approvals | UL, CSA and ENEC | UL, CSA | ENEC, UL, CSA | ||
| Page | 63 | 66 | 70 | ||
|
|
|
Snap-action Microswitches
 |
 |
||||
| Type |
XT |

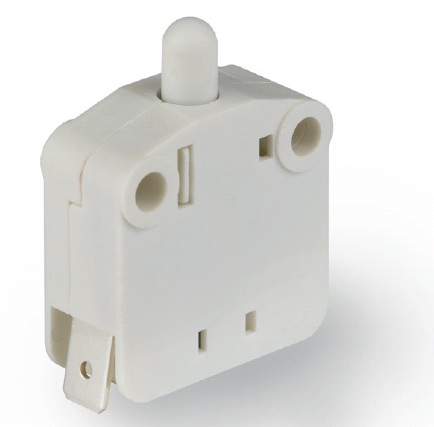

XPC |
|||
| Characteristics | ■ 8 mm contact gap, creepage and clearance distances ■ double break contacts |
■ double break switching ■ positive-action force break option ■ > 3 mm contact gap at full travel option ■ faston terminals |
|||
| Rating | 400 VAC, 6.5 A max. |
120 VAC, 6A 240 VAC, 3A |
|||
| Dimensions(mm) | 30 x 32 x 12 | 30 x 30 x13 | |||
| Actuator | ■ shrouded plunger ■ optional key ■ plain plunger |
■ plunger | |||
| Approvals | UL, cUL, CSA, ENEC | CE | |||
| Page | 73 | ||||
|
|
Auto Power-Off
  |
  |
||||
| Type |
3600 |
3620 |
|||
| Charact. |
■ single pole on/off power switch ■ auto power-off function embedded ■ 4 variants: ■ Timer ■ iF with interface ■ Plus with interface ■ iPlus with interface & microcontroller ■ ideal for small appliances & coffe machines |
■ single or double pole on/off power switch ■ auto power-off function embedded ■ 3 variants: ■ Timer, single disconnect ■ iF with interface, single disconnect ■ iF with interface, double disconnect ■ programmable control option ■ ideal for small appliances, coffe machines & white goods |
|||
| Rating | 250VAC, 12(4)A or 125VAC, 15A | 250VAC, 12(4)A or 125VAC, 15A | |||
| Dim.(mm) | 37,2 x 17 x 38 | Tippmatic iF 25x40x13, Tippmatic iFD 44x32x12 | |||
| Actuator | ■ shrouded plunger ■ optional key ■ plain plunger |
■ shrouded plunger ■ optional key ■ plain plunger |
|||
| Approvals | UL, cUL, CSA, ENEC | UL, cUL, CSA, ENEC | |||
| Page | 72 | 77 | |||
|
|
 |
 |
|
| Contact | Catalogues |
Snap-action Microswitches
 |
 |
||||
| Type |
PN4 |
K5 |
|||
| Characteristics | ■ precision switching ■ long mechanical life ■ screw terminals |
■ double break switching ■ long mechanical life ■ high electrical rating ■ faston terminals |
|||
| Rating | 250 VAC, 15 A | 250 VAC, 6 A | |||
| Dimensions(mm) | 49 x 22 x 17.5 | 41 x 19 x 5.5 | |||
| Actuator | ■ plunger ■ plain lever ■ roller lever |
||||
| Approvals | UL, CSA | UL, CSA | |||
|
|
Display per page
Sort by
|
Product no.: FK4T7YCUL
FK4T7YCUL; Burgess FK4 Series; SNAP-ACTION Ultraminiature Microswitch; Dimensions: 18x8x5mm; Actuating Force(N): 1N; Sealing: IP40; Operating.Pos:10.4mm;Terminal: Solder; Circuit:SPDT; Actuator: Simulated roller;Contacts:Ag; Electrical ratings:Up to 250VAC 5a; Approvals: UL,CSA; RoHS COMPLIANT
|
|
|
|
|
|
Product no.: F4T7YCUL
F4T7YCUL; Burgess F4 Series; SNAP-ACTION Ultraminiature Microswitch; Dimensions: 12.8x10x5mm; Actuating Force(N): 0.7N; Sealing: IP40; Operating.Pos:10.3mm;Terminal: Solder; Circuit:CO; Actuator: Simulated roller;Contacts:Ag; Electrical ratings:Up to 250VAC 5a; Approvals: UL,CSA; RoHS COMPLIANT
|
|
|
|
|
