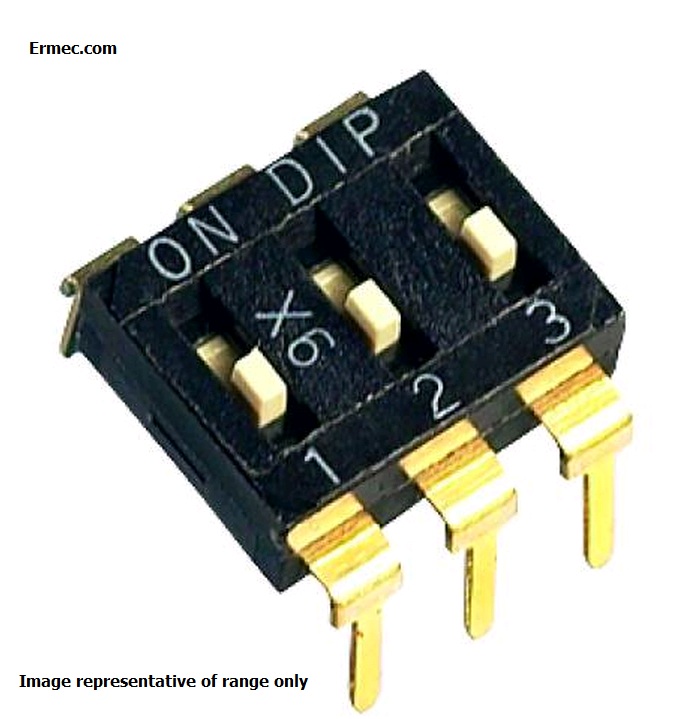

IKE Series; DIP switches, SMT or through-hole;



IKE-Series-Surface-mount-DIP-Switches

The IKE DIP switches are designed for reliable operation with raised actuators, self-cleaning wiping contacts and gold plated terminals.

Available in even and odd pole numbers, surface mount and through-hole PCB mounting.

• Overall height from PCB : 3,80 mm ;

• Raised actuator ;

• Even and odd pole numbers ;

• Self-cleaning wiping contacts ;

• Gold plated terminals ;

• Process compatible - withstand IR reflow soldering ;

Models with recessed actuator and tape available on request.



datasheet



IKN Series; Low profile DIP switches, SMT or through-hole

IKN-Series-minimal-space-requirement-dip-and-coded-rotary-switches

Low profile
• The lowest case available in 2, 4, 6 and 8 pole versions
• Reduction of the shadow effect in IR soldering
• 30 % reduction of component volume

2 VERSIONS
Surface mount models
• Designed for reflow soldering
• UL 94-V0 high temperature materials
• Tin plated terminals
Through-hole models
• Same thermal specifications as SMT models, allowing mixed soldering process

Washable by construction
• Process compatible - withstand IR reflow soldering
• Moulded-in terminals
• Ultrasonic-welded case
• Two slots on case corners allowing removal of protection tape

Reliable contacts
• Anti-crush system on moving contact
• Bifurcated self-cleaning sliding contacts
• Positive detent actuation
• Recessed slide actuators with positive detent preventing accidental actuation
• Good visibility of actuators : black slide on clear background

2 TYPES OF PACKAGING
Surface mount models
• Tape and reel (1.000 pieces per reel) - IC tubes
Through-hole models
• IC tubes

Typical Applications

Telecom, computers, test equipment, security and instrumentation.

datasheet


NDS-DP-DA Series; Standard, piano or right angle DIP switches

NDS-DP-DA-Series

Distinctive features

Single pole single throw standard, piano and right angle style DIP switches available up to 12 positions. Raised or recessed actuators and available with process compatible top tape seal.

• Standard, piano and right angle models
• 2 to 12 positions
• Top tape sealing option

NDS series : standard DIP switches (NDSR : recessed actuator and NDS : raised actuator)
DP series : piano DIP switches (DP : short actuator and DPL : long actuator)
DA series : right angle switches with raised actuator



datasheet


IKD Series; Low Profile - Through Hole or SMT



/IKD-Series-Apem-Low-Profile-Through-Hole-or-SMT

Distinctive features

Self Cleaning wiping contacts
Gold plated terminals
SMT Gull wing or J bend
1 through to 12 poles
Process compatible IR reflow and wave solderable
Typical Applications

 Telecoms,computer hardware, test equipment, security and instrumentation.

datasheet


IKH Series; Surface Mount half pitch DIP switches - very low profile

IKH-Series-Apem-Surface-Mount-half-pitch-DIP-switches-very-low-profile



Distinctive features

The very low profile IKH DIP switch is designed for reliable operation with very small PCB space requirement. Process compatible (withstand IR reflow soldering) and washable (tape seal standard).

• 1,27 mm (.050) terminal to terminal pitch

• Overall height from PCB : 1,6 mm (.063) only

• Very small PCB space requirement

• Process compatible - withstand IR reflow soldering

• Washable (tape seal standard)
