Programmable encoder TISP 58





Download Manua and Software:





MECHANICAL SPECIFICATIONS

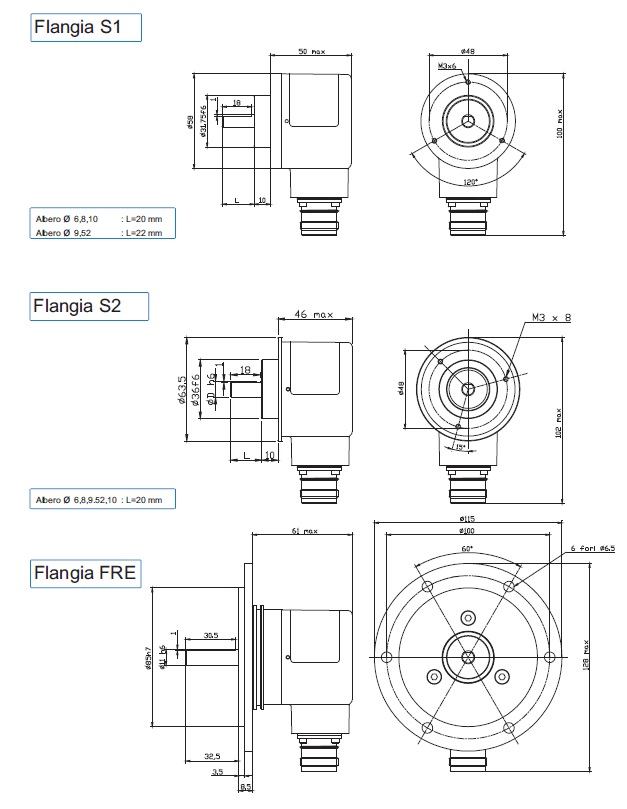

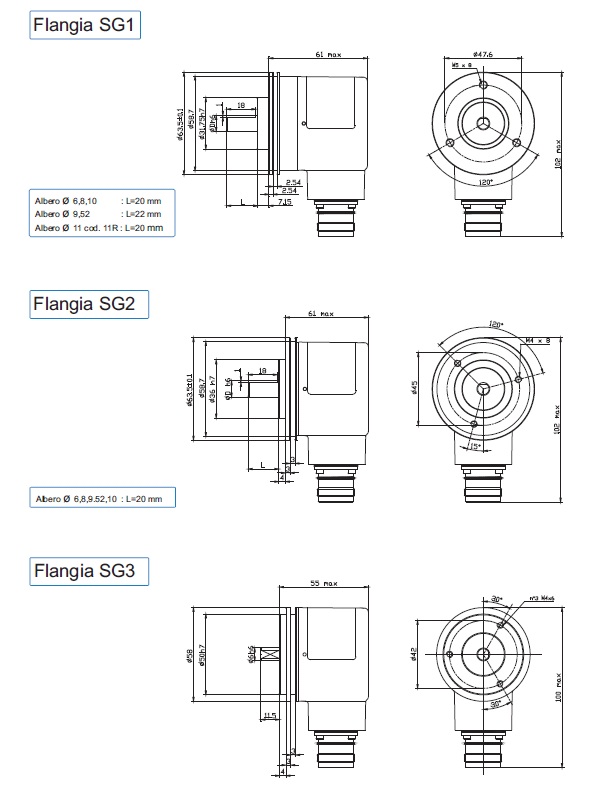

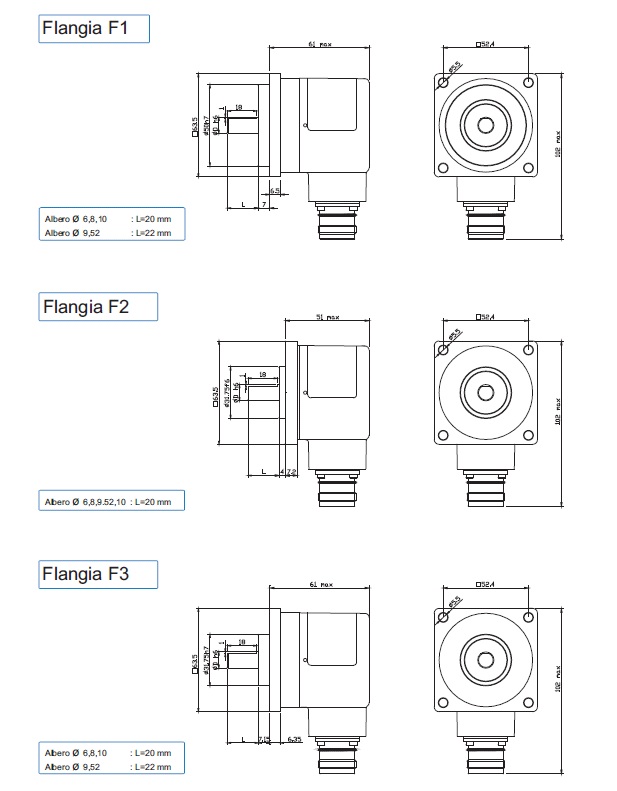

Dimensions: see drawings

Solid shaft: stainless steel (UNI EN 10088-3 DN. 1.4305)

Shaft loading: axial: 100 N; radial 100 N

Shaft rotational speed:10.000 RPM to short cycle time; 6.000 RPM continuous;

2000 giri/min with protection shaft

Starting torque at 25°C: 0,025 Nm; 0.040Nm with proof shaft; *(1)

Moment of inertia: 40 g cm2

Bearings life: 5 x 109 giri (minimo) - rev. min.

Weight: 0,3 kg





ELECTRICAL SPECIFICATIONS

Resolution: programmable from 1 to 65536

Output frequency: up to 300 kHz

Index pulse positioning: Index position freely settable

Programmable counting direction: user selectable (CW or CCW)

Power consumption: <500 mW (without load)

Protection: short circuit and inversion of polarity protection



MATERIALS

Flange: aluminium non corroding

Housing: Polyamid 6 (PA6) - (metallic on request)



ENVIRONMENTAL SPECIFICATIONS

Operating temperature range: -25°C to +85ºC (100ºC on request)

Storage temperature range: -25ºC to +85ºC

Relative humidity : 98% RH without condensing

Vibrations: 10 g (From 10 up to 2.000 Hz)

Shock: 20 g (for 11 ms)



TYPE: zero - bidirectional + index



ASSEMBLY:

F1: Square flange (TK40)

F2: Square flange (TK45)

F3: Square flange (TK50)

SG1: Servo-clip (TK50)

SG2: Servo-clip (TK45)

SG3: Servo-clip

S1: Servo Flange

S2: Servo Flange (TK45)

FRE: REO 444 Flange (Tk50)



PULSE RATE:

programmable

from 1 to 65536

If not specified will be set equal to 1024 PPR



Voltage supply: +5 to 30V



Output frequency: from 0 a - up to 300 kHz



Protection class:

K4: IP 64 (EN60529) (F1-F2-F3-SG1-SG2-SG3-S1-S2-FRE)

K5: IP 65 (EN60529) (F1-F3-SG1-S1-FRE)

K6: IP 66 (EN60529) (F1-F3-SG1-S1-FRE)





OUTPUT CIRCUITS:

PP2-530: Push-Pull output 5V or 5/30V user selectable

LD2-530: Line-driver output 5V or 5/30V user selectable

Other electronics interface on demand



ELECTRICAL CONNECTIONS

OUTPUT: PP2 ; LD2

R2 on 12 pins radial “contact” connector

Others connections type on request



Shaft:

6: Ø6mm  (Flange F1- F2 - F3 - SG1 - SG2 - SG3 - S1 - S2)

8: Ø8mm (Flange F1- F2 - F3 - SG1 - SG2 - S1 - S2)

9,52: Ø9,52mm (Flange F1- F2 - F3 - SG1 - SG2 - S1 - S2)

10: Ø10mm (Flange F1- F2 - F3 - SG1 - SG2 - S1 - S2)

11: Ø11mm (Flange FRE - SG1)

11R: Ø11mm (Flange FRE - SG1)











Others Italsensor Tekel encoders:



---
