10Q Series

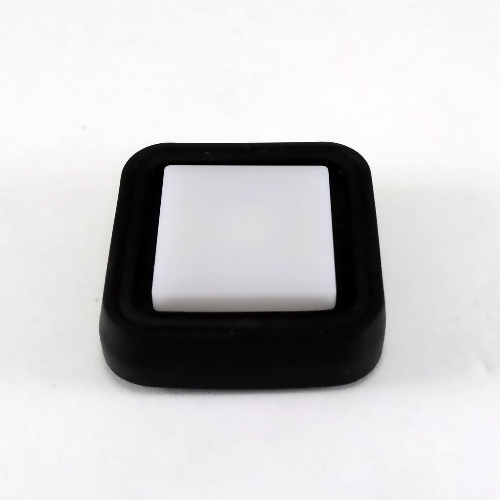

10Q/10QM Sealed Switches



10Q SEALED10Q SEALED botón cuadrado LOAD

MAIN FEATURES 10Q/10QM SERIES
  • 22 x 22 mm
  • 10Q - flat top with slightly sharper edges
  • 10QM - flat top with a metal plate (for legend) that leaves a 1mm rim.
  • Standard solid cap colours: blue, green, grey, yellow, white, red and black
  • Standard transparent colour: frosted white
  • Optional parts:
  • Spacer 10QY - improves activation and sealing functionality (necessity dependent on front panel thickness and design considerations)
  • Sealing is only necessary when front panel sealing (to IP67) is required
  • The cap series is designed to be flush with the front plate to give a neat and aesthetic look.
  • The cap series provides many options regarding illumination. As LEDs need to be placed on the PCB to have an even illumination, it is easy to customise your design.
  • There is full illumination with frosted white 10Q cap and legend illumination with either reverse-printed 10Q or metal legend on 10QM.
  • 10Q/10QM cap series is based on Multimec 5G series series.
