Ø12.7mm

Bulgin Indicator Ø12.7mm



Ø12.7 2870 SERIEs

2870

Ø12.7mm Panel Cut Out, 13.6mm Bezel.
Termination: 6.3 x 0.8 QC, 4.8 x 0.8 QC, 2.8 x 0.8 Tab, Wire Leads.
Illumination and voltage:
Neon: 100V-130V, 200V-250V
LED: 2VDC-2.2VDC, 6VDC, 12VDC, 24VDC, 110VAC-230VAC
Filament: 6V, 12V-14V, 24V-28V
Lens colour:
Neon, Filament: Red, Amber, Green, Clear
LED: Red, Yellow, Green, White, Blue
Approvals: Neon: UL, CSA, KEMA-KEUR.
datasheet

Ø12.7 2821 SERIEs

2821

Ø12.7mm Panel Cut Out, 14.5mm Bezel.
Termination: 6.3 x 0.8 QC, 4.8 x 0.8 QC, 2.8 x 0.8 Tab, Wire Leads.
Illumination and voltage:
Neon: 100V-130V, 200V-250V
LED: 2VDC-2.2VDC, 6VDC, 12VDC, 24VDC, 110VAC-230VAC
Filament: 6V, 12V-14V, 24V-28V
Lens colour:
Neon, Filament: Red, Amber, Green, Clear.
LED: Red, Yellow, Green, White, Blue
Approvals: Neon: UL, CSA, KEMA-KEUR
datasheet

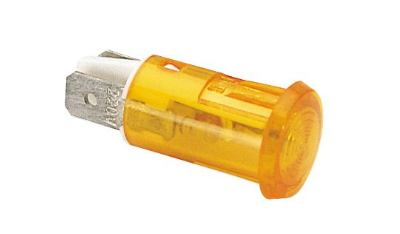

Ø12.7 0589 SERIEs

0589

Ø12.7mm Panel Cut Out, 15.9mm Bezel.
Termination: 6.3 x 0.8 QC, 4.8 x 0.8 QC, 2.8 x 0.8 Tab, Wire Leads.
Illumination and voltage:
Neon: 100V-130V, 200V-250V
LED: 2VDC-2.2VDC, 6VDC, 12VDC, 24VDC, 110VAC-230VAC
Filament: 6V, 12V-14V, 24V-28V
Lens colour:
Neon, Filament: Red, Amber, Green, Clear.
LED: Red, Yellow, Green, White, Blue
Approvals: Neon: UL, CSA, KEMA-KEUR
datasheet

Ø12.7 0586 SERIEs

0586

Ø12.7mm Panel Cut Out, 15.5mm Square Bezel.
Termination: 6.3 x 0.8 QC, 4.8 x 0.8 QC, 2.8 x 0.8 Tab, Wire Leads.
Illumination and voltage:
Neon: 100V-130V, 200V-250V
LED: 2VDC-2.2VDC, 6VDC, 12VDC, 24VDC, 110VAC-230VAC
Filament: 6V, 12V-14V, 24V-28V
Lens colour:
Neon, Filament: Red, Amber, Green, Clear.
LED: Red, Yellow, Green, White, Blue
Approvals: Neon: UL, CSA, KEMA-KEUR
datasheet

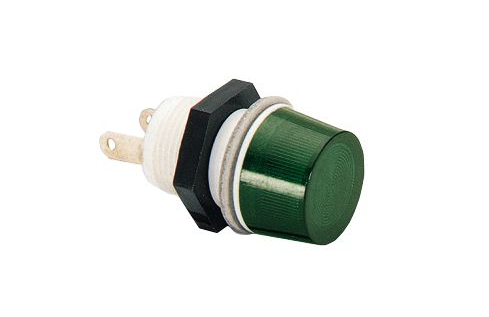

Ø12.7 0062 0063 SERIEs

0062

Ø12.7mm Panel Cut Out, 14.7mm Bezel.
50V maximum. Can be supplied complete with 6V, 12V or 24V  lamp
Termination: Small Solder Tag.
Lamp type: Midget Flange (0062 Series), LES (0063 Series)
Lens colour: Red, Amber, Green, Clear.
Bezel option: Part numbers containing 0062A, 0063A have a Chrome Plated Brass Bezel
IP67 Panel Sealed version available
datasheet

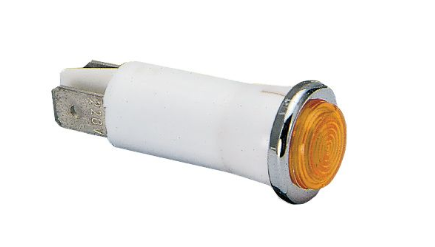

Ø12.7 0067 SERIEs

0067

Ø12.7mm Panel Cut Out, 16mm Bezel.
Termination: 6.3 x 0.8 QC, 4.8 x 0.8 QC, 2.8 x 0.8 Tab, Wire Leads.
Illumination and voltage:
Neon: 100V-130V, 200V-250V
LED: 2VDC-2.2VDC, 6VDC, 12VDC, 24VDC, 110VAC-230VAC
Filament: 6V, 12V-14V, 24V-28V
Lens colour:
Neon, Filament: Red, Amber, Green, Clear.
LED: Red, Yellow, Green, White, Blue
Approvals: Neon: UL, CSA, KEMA-KEUR
datasheet

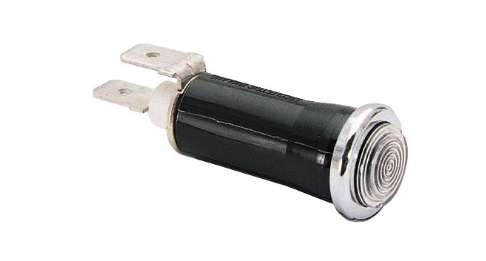

Ø12.7 0067 low SERIEs

0067oo

Ø12.7mm Panel Cut Out, 16mm Bezel.
Low voltage BA7s lampholder
Operating voltage: 50V maximum. Can be supplied complete with 6V, 12V or 24V BA7s lamp
Termination: 6.3 x 0.8 QC
Lens colour: Red, Amber, Green, Clear.
Bezel: Chrome, Matt Black
Rear of panel lamp replacement
datasheet

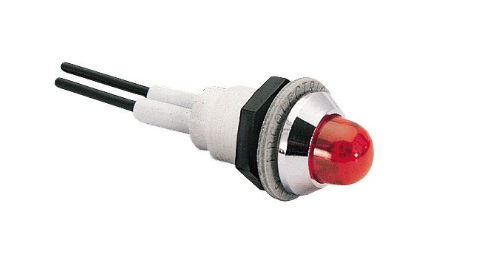

Ø12.7 0081 SERIEs

0081

Ø12.7mm Panel Cut Out, 18.3mm  Bezel.
Illumination and voltage:
Neon: 100V-130V, 200V-250V
LED: 2VDC-2.2VDC, 6VDC, 12VDC, 24VDC, 110VAC-230VAC
Filament: 6V, 12V-14V, 24V-28V
Lens colour:
Neon, Filament: Red, Amber, Green, Clear.
LED: Red, Yellow, Green, White, Blue
Chrome Plated Brass Bezel as standard.
Approvals: Neon: UL, CSA, KEMA-KEUR
datasheet

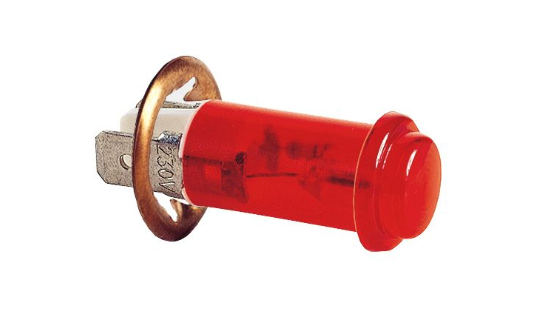

Ø12.7 0180aa SERIEs

180aa

Ø12.7mm Panel Cut Out, 15mm Bezel.
Termination: 6.3 x 0.8 QC
Neon: 100V-130V, 200V-250V
LED: 2VDC-2.2VDC, 6VDC, 12VDC, 24VDC
Filament: 6V, 12V-14V, 24V-28V
Lens colour:
Neon, Filament: Red, Amber, Green, Clear.
LED: Red, Yellow, Green, White, Blue
Approvals: Neon: CSA, KEMA-KEUR

datasheet

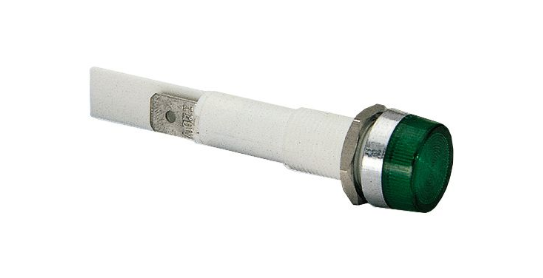

Ø12.7 0177 SERIEs

0177

Ø12.7mm Panel Cut Out, 14.6mm Bezel. IP67 Option.
Termination: 6.3 x 0.8 QC, 4.8 x 0.8 QC, 2.8 x 0.8 Tab, Wire Leads.
Illumination and voltage:
Neon: 100V-130V, 200V-250V
LED: 2VDC-2.2VDC, 6VDC, 12VDC, 24VDC, 110VAC-230VAC
Filament: 6V, 12V-14V, 24V-28V
Lens colour:
Neon, Filament: Red, Amber, Green, Clear.
LED: Red, Yellow, Green, White, Blue
Approvals: Neon: UL, CSA, KEMA-KEUR
datasheet
