Finger operated Joysticks



XF SERIES

JC SERIES

---

NZ SERIES

Compact dimensions 11.9mm mounting collar Alternate Handle Selection Optional: Polyamide handle Flexible Silicone sealing rings Microswitches V5 up to 2A

1000HE SERIES

Dry contacts  1 or 2 axles (metal limiter as standard)  Double protection against water and dust IP67  Resistant to oil, petroleum, UV  Extra strong spring  Single or double pole. Up to 10A  Available with 2 handles  Nut for mounting fixture

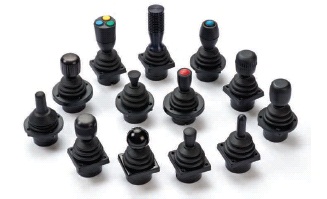

3000 SERIES

Easily customizable  The shortest Z-axis angle  Hall effect sensor  Wide output range  Strong RFI immunity  Metallic mechanism  Sub panel or Drop-in mounting Mounting depth <20mm

ht SERIES

Finger position control Robust Available with CANbus J1939 Available with USB 1.1 HID compliant interface Configurations with 1, 2 and 3 axes  10 million life cycle Sealed to IP68

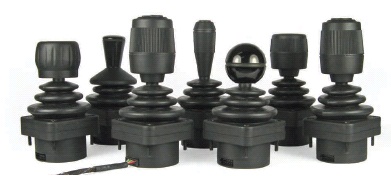

hf SERIES

Hall effect sensor USB versions available Up to 3 control axes Voltage regulator, 24V supply option Sealed IP67

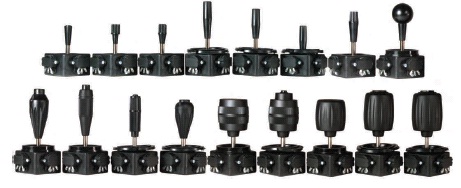

m SERIES

Potentiometric sensor Up to 3 axes Available in two dimensions Low profile Low panel depth

4000 SERIES

Different potentiometer options Optional: center detection with microswitch. Robust, all-robust mechanism Very customizable  High RFI/EMC immunity

1000 SERIES

Compact dimensions  One or two axes  Single or double pole  Microswitches V4 or V3  Mounting with bushing or nut Gold contacts  IP65  Alternative Microswitches and Handles

8000 SERIES

One or two axes Option: microswitch for center detection.  Wide range of handles Up to 1A Gold plated contacts Progressive or single-step switching

9000 SERIES

Robust mechanism  Switching with microswitches One or two axes  Over IP65 panel Single or double pole  Available with pushbutton handles







---
