Distinctive features

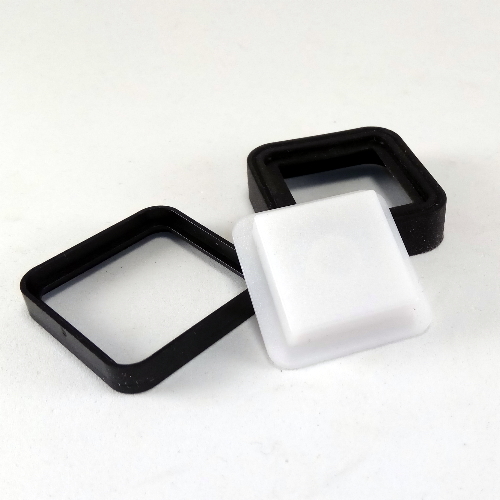

  The 10Q/10QM series:

22 x 22 mm
10Q - flat top with slightly sharper edges
10QM - flat top with a metal plate (for legend) that leaves a 1mm rim.
Standard solid cap colours: blue, green, grey, yellow, white, red and black

Standard transparent colour: frosted white
Optional parts:

Spacer 10QY - improves activation and sealing functionality (necessity dependent on front panel thickness and design considerations)
Sealing is only necessary when front panel sealing (to IP67) is required
The cap series is designed to be flush with the front plate to give a neat and aesthetic look.

The cap series provides many options regarding illumination. As LEDs need to be placed on the PCB to have an even illumination, it is easy to customise your design.

There is full illumination with frosted white 10Q cap and legend illumination with either reverse-printed 10Q or metal legend on 10QM.


10Q/10QM cap series is based on Multimec 5G series series.

See more information in the brochure.
