Características
|
![]() |
![]() |
![]() |
![]() |
![]() |
|
|
||||||
Serie | DG76 ![]() |
DG77 ![]() |

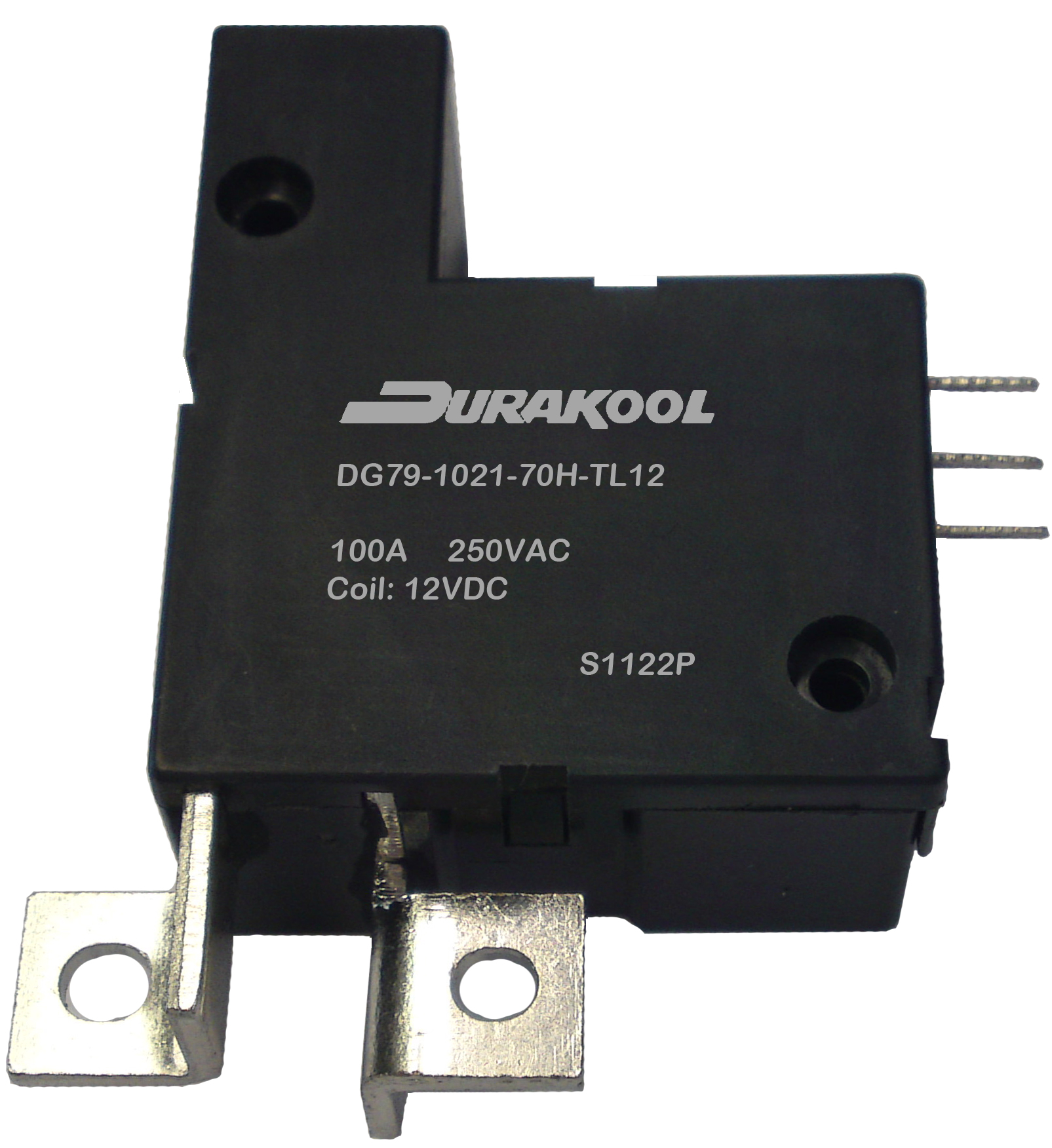

DG79 ![]() |
DG5N ![]() |
DG6D ![]() |
|
Dimensiones (L x W x H) Pulgadas | 1.50 x 0.67 x 1.18 |
1.52 x 0.69 x 1.38 |
2.05 x 1.69 x 0.87 |
0.81 x 0.27 x 0.6 |
0.69 x 0.26 x 0.49 |
|
Configuración del contacto | SPST-NO |
SPST-NO |
SPST-NO |
SPST-NO |
SPST-NO |
|
Tensión de conmutado máx. máx. | 250VAC / 30VDC |
250VAC / 110VDC |
250VAC / 30VDC |
250VAC / 30VDC |
250VAC / 30VDC |
|
Ratio Corriente | 60A, 90A |
60A 240VAC / 80A 240VAC |
100A 240 VAC |
5A / 30VDC / 250VAC |
5A 30VDC / 250VAC |
|
Material del contacto | AgCdO, AgSnO2 |
AgCdO / AgSnO2 |
AgCdO / AgSnO2 |
AgSnO2 |
Ag Alloy |
|
Tensión del bobinado | DC 5V...48V |
DC 5V...48V |
DC 9V...48V |
DC 3...24V |
DC 5...24V |
|
|
||||||
Características
|
![]() |
![]() |
![]() |
![]() |
||
|
||||||
Serie | DG05 ![]() |
DM05 ![]() |
DG31 ![]() |
DG6L ![]() |
DM41 ![]() |
|
Dimensiones (L x W x H) Pulgadas | 0.72 x 0.40 x 0.61 |
0.81 x 0.42 x 0.60 |
0.74 x 0.61 x 0.61 |
1.12 x 0.4 x 0.48 |
1.14 x 0.51 x 1.00 |
|
Configuración del contacto | SPST-NO / SPDT |
SPST-NO / SPDT |
SPST-NO / SPDT |
SPST-NO / SPDT |
SPST-NO / SPST-NC / SPDT |
|
Tensión de conmutado máx. máx. | 277VAC / 30VDC |
277VAC / 30VDC |
250VAC / 30VDC |
440VAC / 125VDC |
240VAC / 28VDC |
|
Ratio Corriente | 10A 250VAC (UL) / 3A 250VAC / 30VDC |
10A 250VAC (UL) / 5A 250VAC / 30VDC |
12A 120VAC / 7A 250VAC / 10A 28VDC |
8A 250VAC / 5A 30VDC |
10A 240VAC / 28VDC |
|
Material del contacto | Ag Alloy |
Ag Alloy |
AgCdO / AgSnO2 |
AgNi / AgSnO2 |
AgCdO / AgSnO2 |
|
Tensión del bobinado | DC 3...24V |
DC 3...24V |
DC 3...48V |
DC 5...60 |
DC 5...110 / AC 12...220 |
|
|
|||||
Características
|
|
N.º de producto: DG85A-2011-96-1012
Relés Durakool; Tensión máxima de conmutación: 30VDC; Máx.corriente en continuo: 40A;
|
|
|
